Export from Safilia

Overview

Generate an XML file that can be imported into Astah by using SCDL XML export tool (Safilia extension tool). Use the SCDL’s XML export tool in a dedicated Safilia tuned to make it work.

Supported Models

The models shown below can be exported to XML File.

  • Requirements

  • Element

  • Item (imported as an Element)

  • Requirement Group

  • Interaction

  • System Boundary Interaction

  • Coexistence Target

  • Requirement Group Pairing

  • Constraint Pairing

  • Package

Unsupported Models

The models shown below cannot be exported to XML File.

  • Other Technology Link

  • External Plant

  • L Line

  • Independence Line

  • Note

  • Note Anchor

  • Text, TextBox, Filled TextBox

  • Rectangle, Filled Rectangle, Rounded Rectangle, Filled Rounded Rectangle, Oval, Filled Oval

  • Line

  • Freehand, Highlighter

  • Image

How to Export

  1. Unzip the Safilia (safilia-2.0-jre-64bit.zip) tuned for export. Double-click safilia.exe in the unzipped Safilia folder to start Safilia.

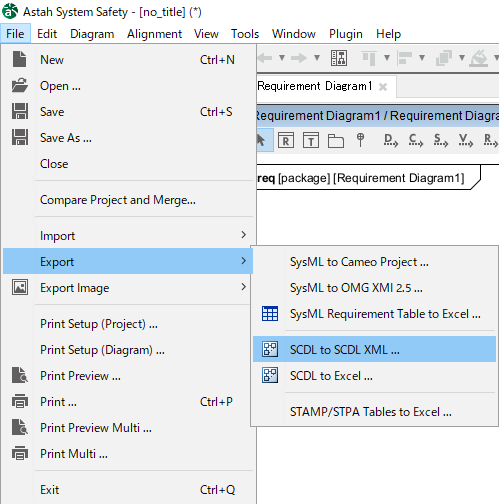

  2. Open the project to export and select [File] - [Export] - [SCDL to SCDL XML …] in the Main Menu.

select_export_menu_on_safilia

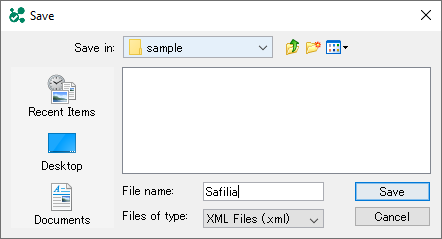

  1. Open the file to export from the Select File dialog, enter the export file name, and press the [Save] button.

input_export_file_name_on_safilia

Attention

  • Export is done on a project-by-project basis. Export cannot be done on a package-by-package basis.

  • Styles such as colors and fonts set on Diagram Elements are not exported.

  • Safilia tuned for export should be used only for this data export, and should not be used for other tasks such as writing a new SCDL.
