System Properties

The System Properties of SCDL can be set up by selecting [Tools]-[System Properties] in the Main Menu to open [SCDL].

To apply settings to the current project, check on “Apply the project settings to the current project” in the System Property dialog.


Default Item Size

The initial item size for each model elements can be set in this segment.

To apply the size you input, check the box. “Maximum size of image on diagram” limits the maximum size of images on diagrams when the box of “Image” is unchecked. All check boxes are [OFF] by default.

Some models may appear in different size despite the size you specify depending on the length of its name, etc.


Default Item Color

Set the color when creating new elements.

To sync the settings of the project with the settings in the System Properties, click [Project Settings] in the Project Properties.


Note

When the project icon is displayed for certain Diagram Elements, the color settings for those elements are saved to each project that is created.


Default Stereotype Color

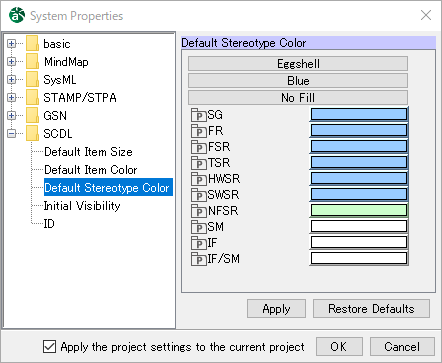

The initial color for each Stereotype can be set in this segment.

Eggshell

Applies preset 1 – eggshell based color (Default)

Blue

Applies preset 2 – blue based color

No Fill

No color

Note

Project Icon Displayed at the Top of Each Model When the project icon is displayed for certain Diagram Elements, the color settings for those elements are saved to each project that is created.

To sync the settings of the project with the settings in the System Properties, click [Project Settings] in the Project Properties.


Initial Visibility of Safety Concept Diagram

Set whether to show or hide items.


ID

Set the ID prefix of Diagram Elements that can be created in Safety Concept Diagrams.
