This page guides you how to set up the plug-in development environment for Astah UML.
3. Extract the Astah Plug-in SDK to a folder then set the following environment variables.
e.g.) set ASDK_HOME=C:\dev\astah-plugin-SDK-1.5
e.g.) set PATH=%ASDK_HOME%\bin;%PATH%
e.g.) set JAVA_HOME=C:\Program Files (x86)\Java\jdk1.7.0_65
4. Run the command below.
5. If the below appears, that means an installation of Astah Plug-in SDK is completed.
> astah* Plug-in SDK version: 1.5
6. Open %ASDK_HOME%¥conf¥settings.xml with a text editor.

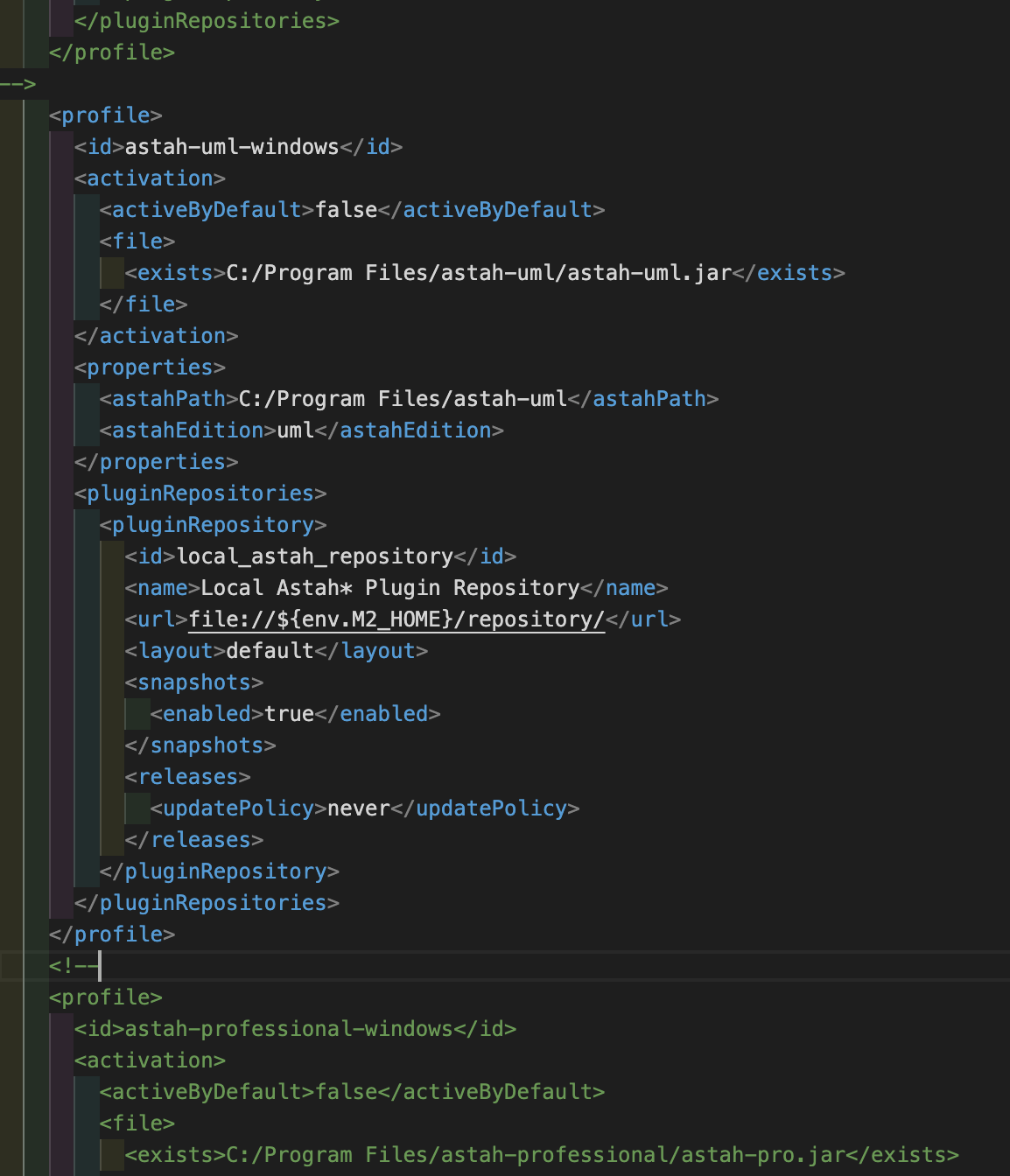

In this .xml file, there are several pre-set profiles for Astah’s each edition and OS.
By default, this is set for Astah Professional on Windows. So you need to change this to Astah UML and the OS you are using.
So please make sure to choose the profile for Astah UML and your OS and make others commented out.

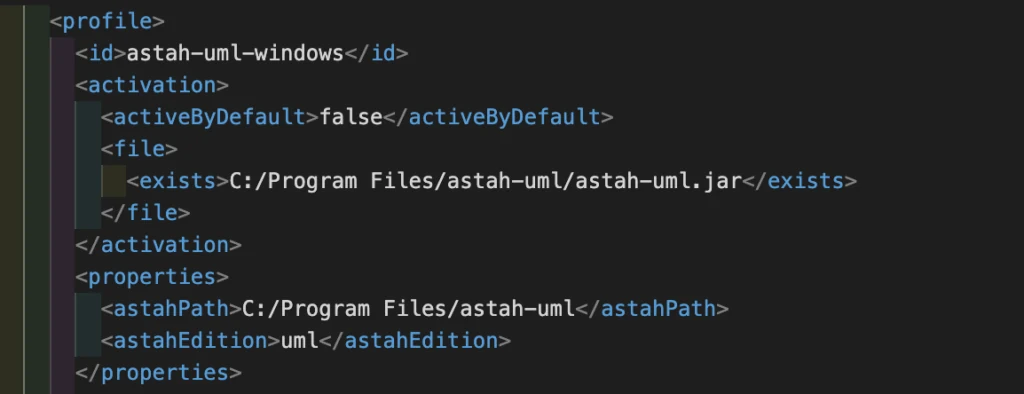

Also, after you choose the profile, please double-check that the file path to Astah app and edition are correct in the following three properties:
Now, run the command below to make sure Astah launches on the SDK.:
If you get one of the following errors, please try the workaround noted here.
Return code is: 501, ReasonPhrase:HTTPS Required
Could not transfer artifact xxx from/to central
