With Astah SysML, you can compare models and diagrams in two project files. Differences are shown in a list and also visually in the diagrams, with markups.

Comparing two SysML projects in Astah SysML
section divider

Compare Diagrams

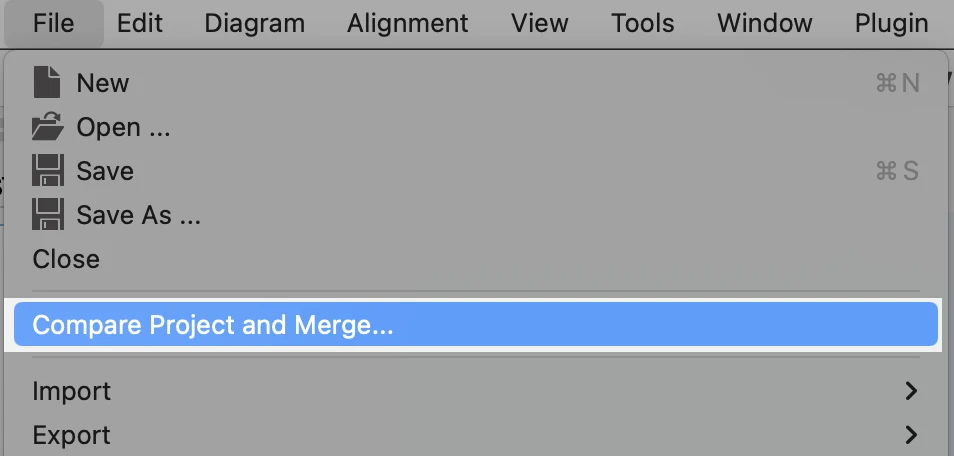

  1. Open a file, then go to [File] – [Compare Project and Merge].
    Compare Project and Merge menu
  2. Select another project file to compare.

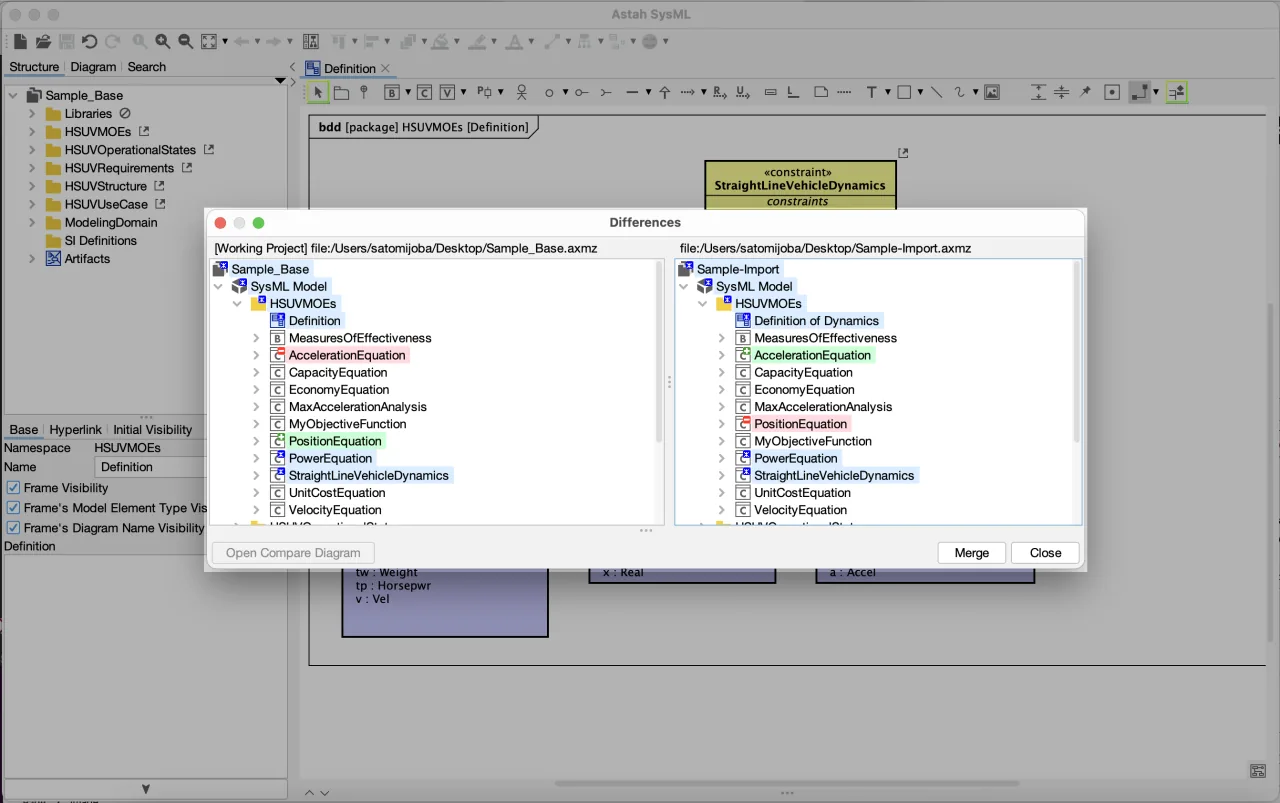

  3. The [Differences] pop-up opens, showing the diagrams and models of both project files side by side in a tree view.
    Differences window comparing two Astah SysML projects
    Diagrams and models with differences are indicated by color:
    • Blue: The model exists in both files, but differs between them.
    • Red: The model does not exist in this file but exists in the other file.
    • Green: The model exists only in this file and not in the other file.

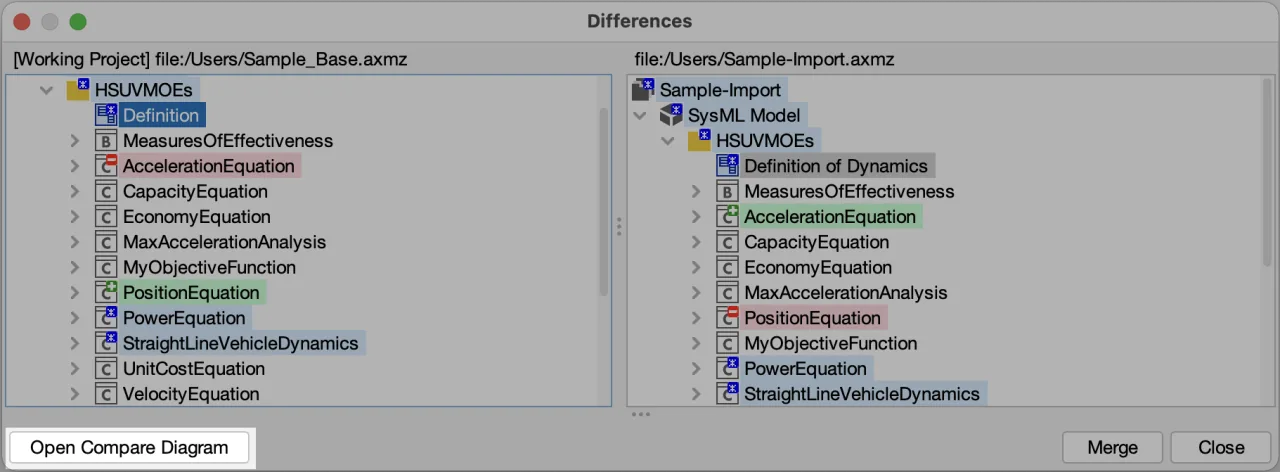

  4. To see the differences visually in diagrams, select a diagram in the tree view and click [Open Compare Diagram].
    Open Compare Diagram button
  5. The two diagrams open side by side with the differences marked up.
    Two SysML diagrams compared side by side with markups
section divider

You can merge files

To merge the two projects after reviewing the differences, click the [Merge] button.

How to merge files
