ER to HTML

Export ER models to HTML files with one click.

Details

Compatible with
Astah Professional 6.7 or later
Latest Version
0.9.7 (Updated on April 5, 2021)
Developer
Shi-n
Support
No technical support is provided.
Download

How to Install

  1. Download the Plugin files.
  2. Unzip the file. It contains three files: EREntityToHTML-x.x.x.jar, index.css, and entity.css.
  3. Drag the .jar file to an open instance of Astah. A pop-up will appear asking you to confirm installation. Choose [Yes], then restart Astah.
  4. If you see [Px3Tool] under [Tools], the installation is complete.
    Px3Tool menu under Tools in Astah

How to Use

  1. Open the file that contains the ER models you want to export to HTML.
  2. Go to [Tools] – [Px3Tool] – [EREntityToHTML].

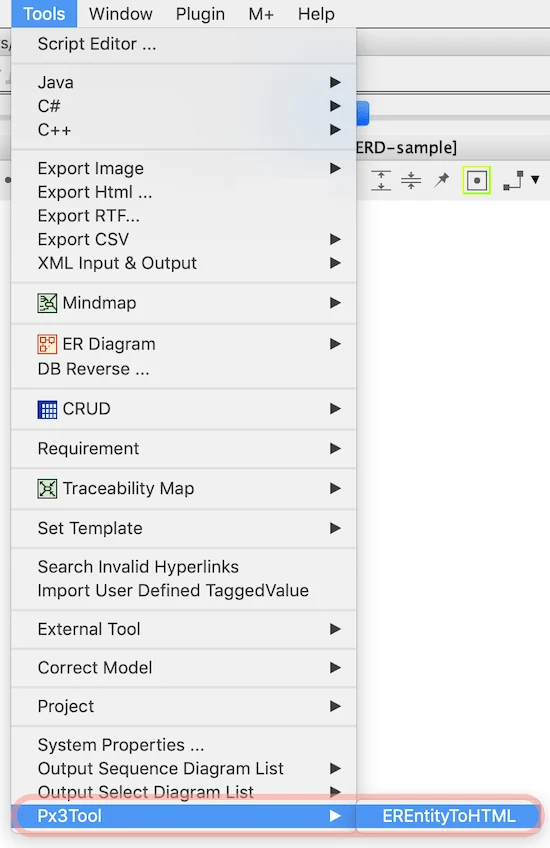

    EREntityToHTML menu under Tools - Px3Tool
  3. A pop-up appears when the HTML export is complete.
    Export completed pop-up
  4. To apply the style sheets, save index.css and entity.css in the same folder as index.html.
    index.html with index.css and entity.css in the same folder

Samples

Sample ER diagram from sample.asta

Exporting the ER model above (from sample.asta in the Astah installation folder) produces the pages below: the entity list on the left and the Customer entity on the right.
Exported HTML: entity list and Customer entity page
