State Transition Path

State Transition Paths serve to monitor and predict the actual behavior patterns of the software that you are modeling. Use Transition Paths as test cases to assure they correctly reflect the software’s true behavior.

Details

Compatible with
Astah Professional and UML version 8.4, Astah System Safety version 6.0
Latest Version
1.4.2 (September 21, 2022)
Developer
Astah
Support
No technical support is provided.

How to Install

  1. Download the Plug-in file. If you are using the old version of Astah or Astah System Safety, please download one that works for your Astah version.
  2. Drag the downloaded .jar file to an open instance of Astah. A pop-up will appear asking you to confirm installation choose [Yes]. Restart Astah.
  3. If you see [State Transition Path] window below the diagram editor, the installation is complete!

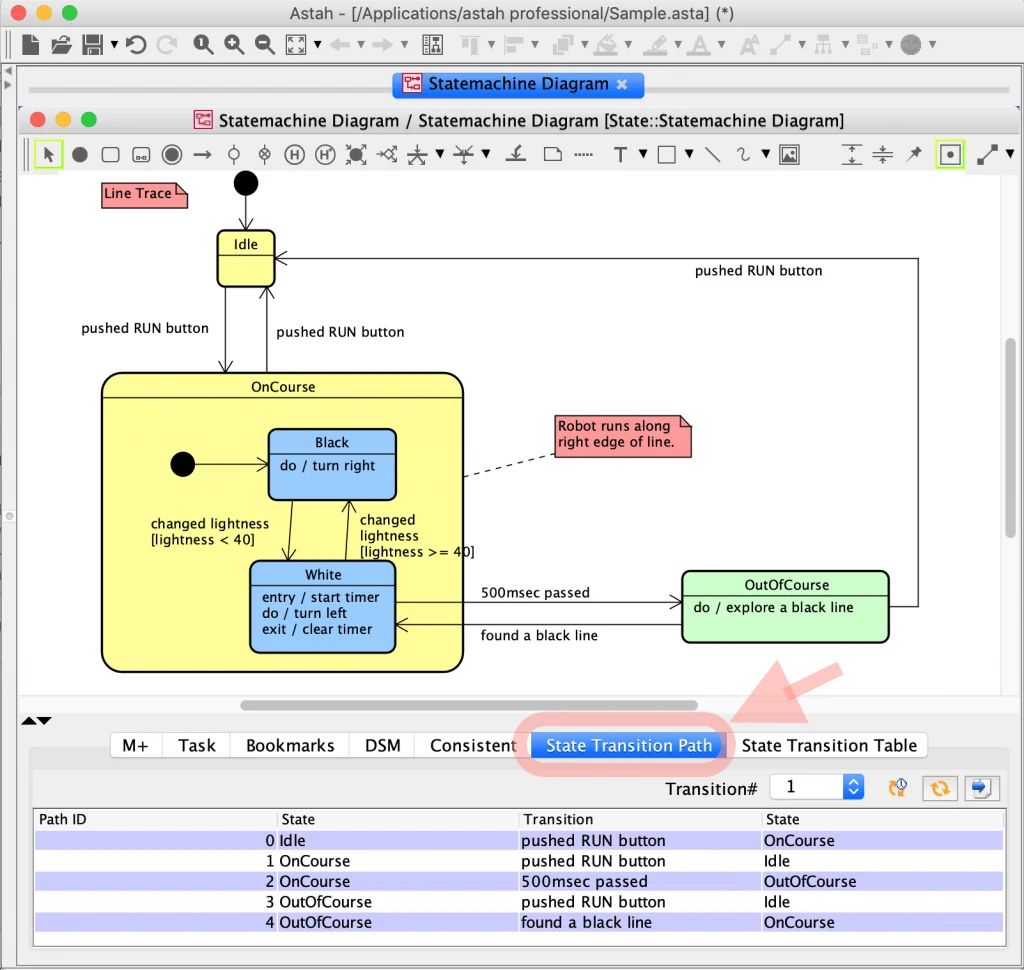

    State Transition Path Overview
    If there is no window below the diagram editor, go to [View] – [Show/Hide Extra View] to open.
    Show/Hide Extra menu in Astah





How to use

When you open a statemachine diagram, the table will open automatically. When you click a transition line on the diagram, the related models would be highlighted, so that you can easily spot where the transition is.

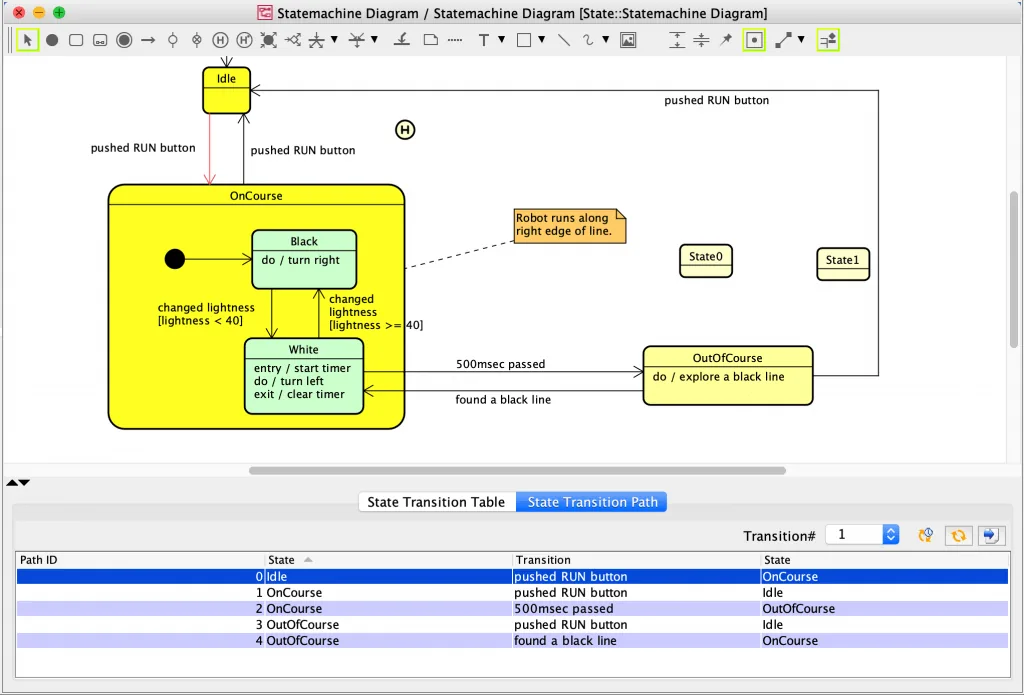

State Transition Path Overview

Sort by Transition numbers

You can switch the State Transition Path list by the number of transitions.
State Transition Path




Export to Excel

To export the State Transition Path to Excel, simply specify the number of transitions, and then click “Export to Excel”.

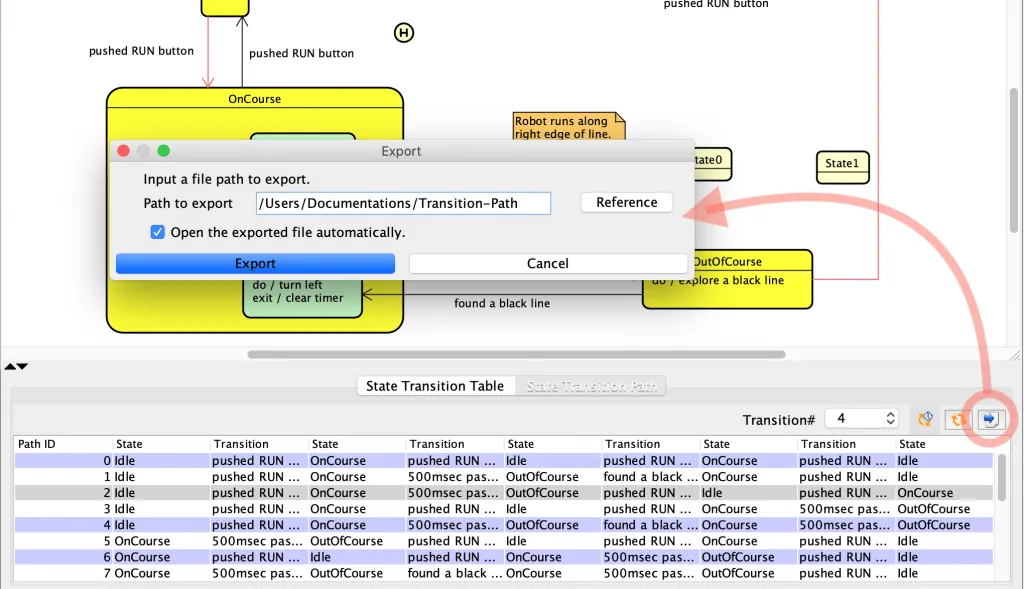

State Transition Path Export to Excel

You can use exported excel as a test case.

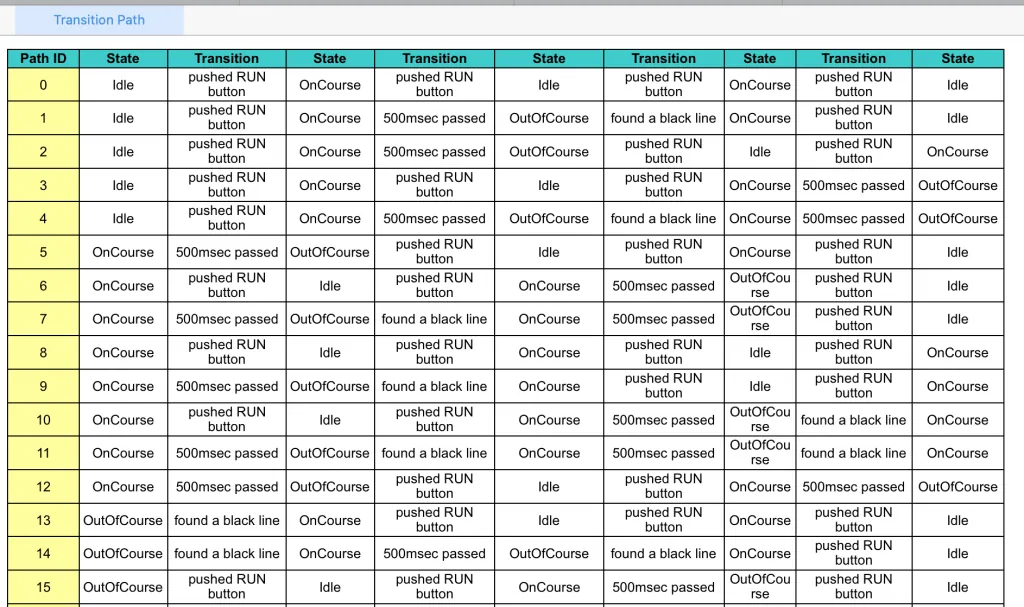

State Transition Path in Excel




Transitions between nested states

In the State transition path, a transition between nested classes would appear as below under its parent state.

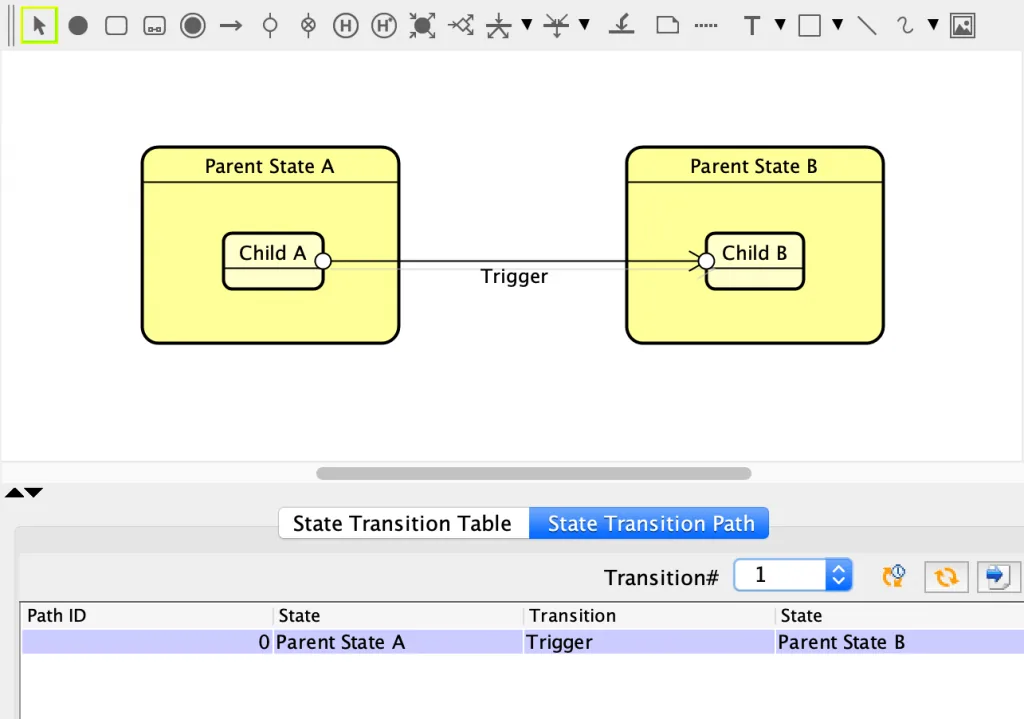

Nested States




NOTE

Currently, State transition paths do not support the following models.

  • Shallow History Pseudo States
  • Deep History Pseudo States





Download Old Versions

Compatible with Plug-in Version Release Date Download
Astah Professional and UML version 6.6 – 8.3
Astah System Safety version 5.0
1.3.4 2019.4.11 Download Icon
