XMI Export

Add [XMI Export] menu in Astah to export model information of Class diagrams to XMI in UML 2.4.1 or CMOF 2.4.1.

Details

Compatible with
Astah Professional 6.8 or later and UML
Latest Version
0.9.2 (May 28, 2014)
Developer
Astah
Support
No technical support is provided.
Download

How to Install

  1. Download the Plug-in file.
  2. After the download is complete, drag the downloaded .jar file to an open instance of Astah. A pop-up will appear asking you to confirm installation choose [Yes].
  3. Restart Astah.
  4. If you see the [Export XMI] option under [Tools], that means your installation is complete!

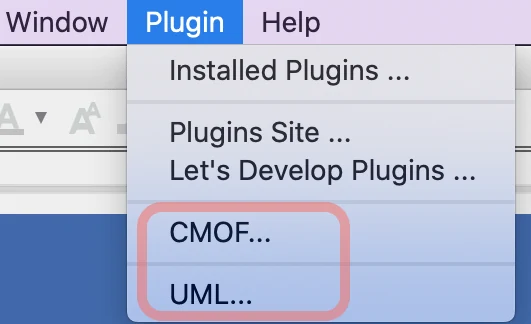

    (In some cases, [UML] and [CMOF] menu would be added under [Plug-ins].)
    XMI Export Menu



How to Use

  1. Open a file and go to [Tools] – [Export XMI] and select [UML] or [CMOF]. (Or [UML] or [CMOF] directly under [Plug-ins].
  2. Choose a location for the XMI file to be exported to and then select [Save].

Restrictions

Exportable Models
  • Packages, Subsystem (Subsystems will be exported as Packages), Classes, Interfaces, Attributes, Operations, Association Classes, Notes which are connected with models, Associations, Dependencies, Generalizations, Realizations and Usages will be exported.
  • Stereotypes and Qualifiers will not be exported.
CMOF
  • When exporting in CMOF format, the following models would be converted to comply with the constraints of CMOF 2.4.1’s.
    • Visibilities of properties would be public
    • “Aggregate” Association End’s would be Composite (Shared)
