PHP Export

Generate source code from class diagrams to PHP language in a simple interface.

Details

Compatible with
Astah Professional and UML version 6.6.4 - 9.2. No longer available for version 10.0.
Latest Version
1.0.4 (Jan 7, 2013)
Developer
Astah
Support
No technical support is provided.
Access on GitHub Download

How to Install

  1. Download the Plug-in file.
  2. After the download is complete, drag the downloaded .jar file to an open instance of Astah. A pop-up will appear asking you to confirm installation, choose [Yes]. If the pop-up below opens, restart Astah.
    Astah Plugin Install
  3. Launch Astah. If you find [PHP] – [Export PHP] under [Tools], that means the installation has completed successfully!
    Export PHP menu



How to Use

  1. Go to [Tools] – [PHP] – [Export PHP].
  2. A list of classes appears. Check the ones you’d like to export and click the [export] button.
    PHP Export
  3. Specify a target directly to export models to and click [OK].

Additional Plug-in

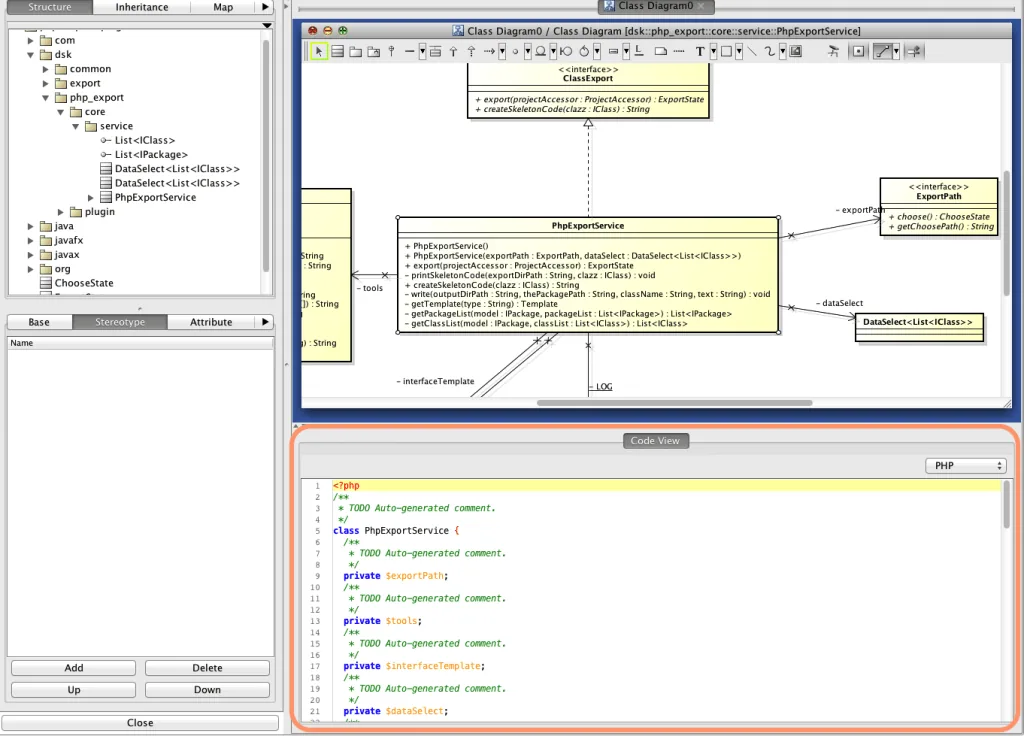

If you’d like to see the PHP code real-time as you model, you can install “PHP Code View” plug-in which adds a window that shows the PHP code as you model. Download and install in the same way as you do with PHP export plugin.
PHP Code Review
