In Astah Professional, you can set an alias for models. For example, you can name the model in English and Japanese and switch it accordingly. This is very useful, especially for offshore development.
Switching Alias

How to set alias

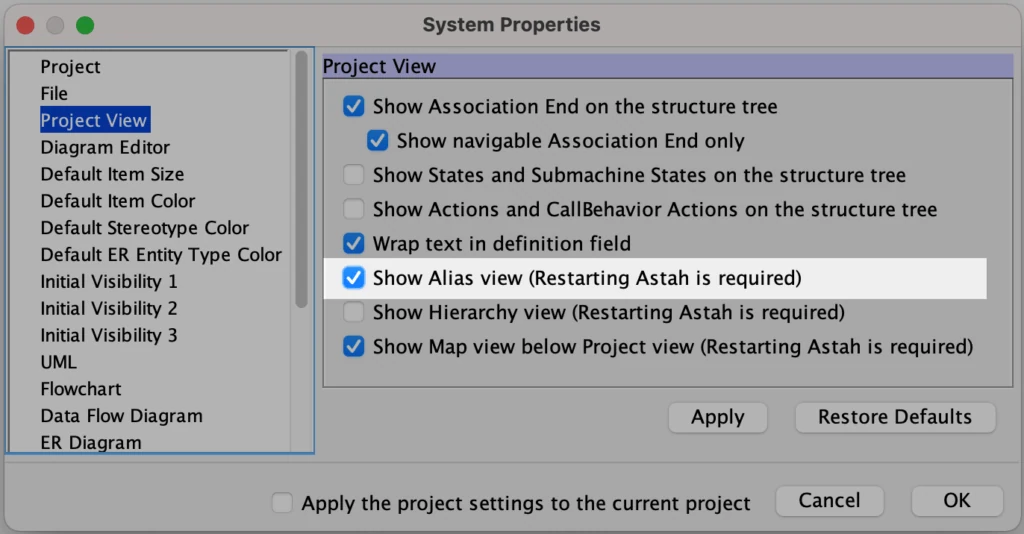

  1. Go to [Tools] – [System Properties] – [Project View] and tick the box of [Show Alias view] option. Click [Apply] – [OK] and restart Astah.
    Alias System Properties


  2. Now you must have [Alias] tab in the top-left pane of Astah.
    Alias Tab

  3. Directly type alias in the Alias field.
    Alias Sample in Action

  4. To switch from the original name to alias, go to [View] – [Alias] – [Alias1].
    Switch to Alias
section divider

Filtering Alias columns

Each model can have up to two aliases. In order to add a second alias, you need to add another alias field first.

  1. Click a filtering button on the right-top corner of Alias pane.
    Alias View


  2. Enable [Alias2] and click [OK].
    Add Second Alias



  3. Now you can add second alias.
    Alias View
section divider

Models you can add an alias

Currently, you can add the alias to the following models:

Model, Package, SubSystem, Class, Attribute, Operation, Parameter, Template Parameter, Association, Association End, Qualifier, Generalization, Usage, Realization, Dependency, InstanceSpecification, Link, Link End, UseCase, Extend, Include, Extension Point, Entity, Domain, Primary Key, Other Key, External Entity, Data Store, Requirement, TestCase, Note, Text and diagram names.

section divider

Hide Alias View

If you do not need to use alias, you can hide [Alias] view which may increase performance.

  1. Go to [Tools] – [System Properties] and choose [Project View] from the left menu.
  2. Unselect [Show Alias View] and click [Apply] – [OK].
    Hide Alias View in Astah

  3. Restart Astah.
  4. [Alias] tab will be gone.
    Hide Alias Tab
