Project files can be compared with the working project as follows:

  1. Go to [File]-[Compare Project].

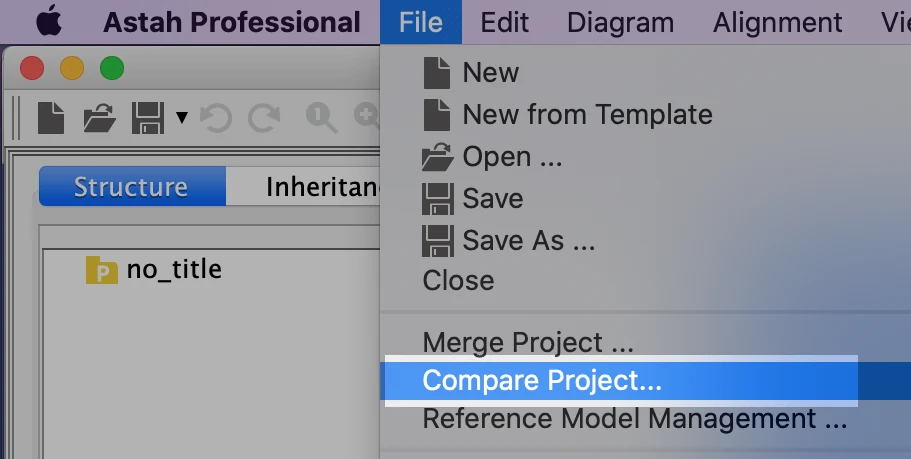

    Compare Project menu
  2. Select the target project and click [Open].
  3. The “Compare Project” dialog is displayed.
section divider

[Compare Project] Window

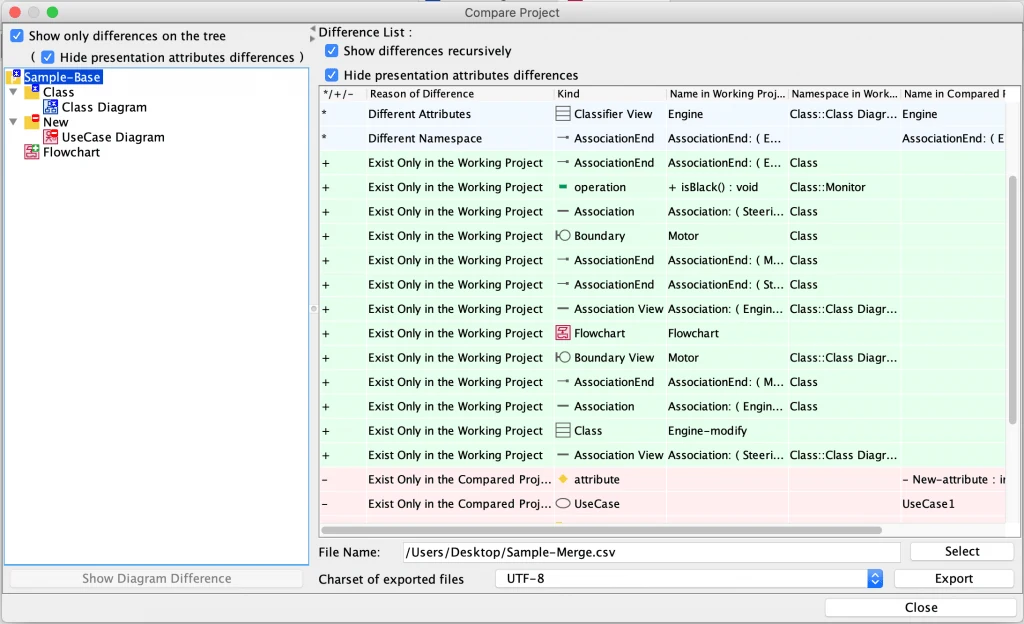

compare-project-overview

Conflict Tree

The differences between the working project and the compared project are displayed in the Conflict Tree.

Icon

Description
Compare Green
This indicates that these diagrams/models exist only in the working project.
Compare - red icon
This indicates that these diagram/models exist only in the compared project.
Compare Blue
This indicates that these diagrams/models exist in both projects.

Compare Diagrams Visually

You can compare two diagrams visually by clicking the [Show Diagram difference] button.

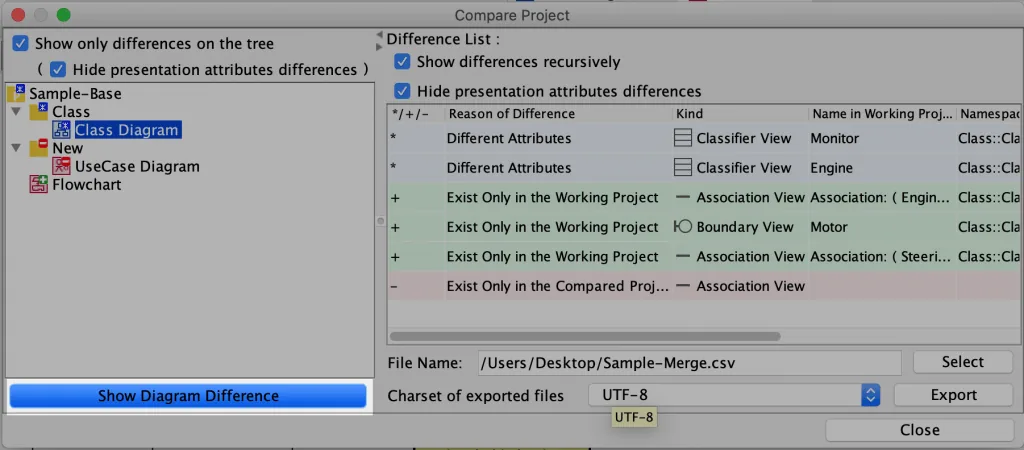

Show diagram diffrence


This pulls out a new window with two diagrams side by side with marks.
You can filter the changes by the type of change such as “Added”, “Deleted” and “Modified”.
Compare Project

Since version 8.2, the “hide differences in appearance” option is available.
Checking this option will make only the modified models have a mark on. So models with presentation changes such as color changes and subtle re-location will not be detected as a difference.
Hide Changes

section divider

Export Result of Comparison

Export Conflict List
  1. Click [Select] in the Compare Project dialog, and specify the exported file.
  2. Click [Export] to export the result of the project comparison.
