HTML Export

API Documentation (javadoc) of the opened Project can be generated in HTML format as follows:

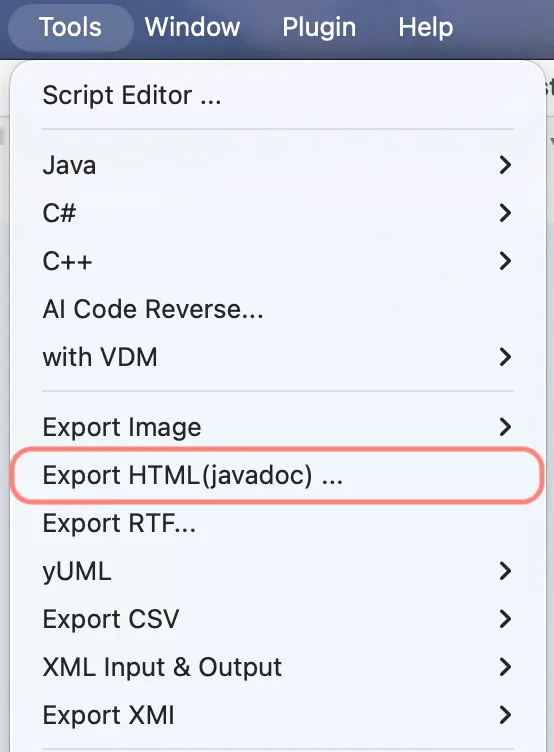

  1. Go to [Tools] – [Export HTML]
    Export HTML menu
  2. Specify a folder where you want to export HTML to.

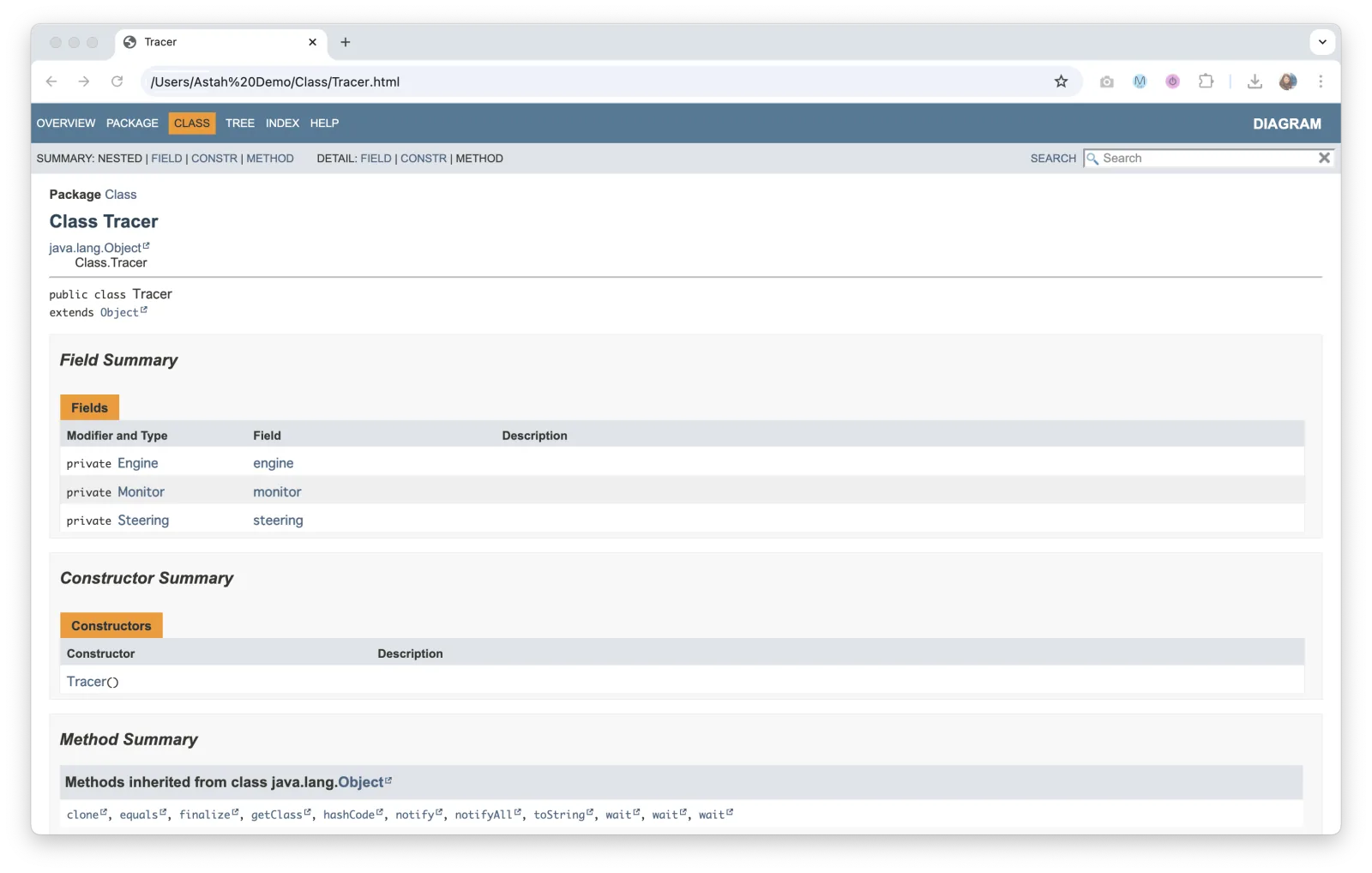

  3. Exported HTML will look like this:
    Open Class Diagram on Web Browser

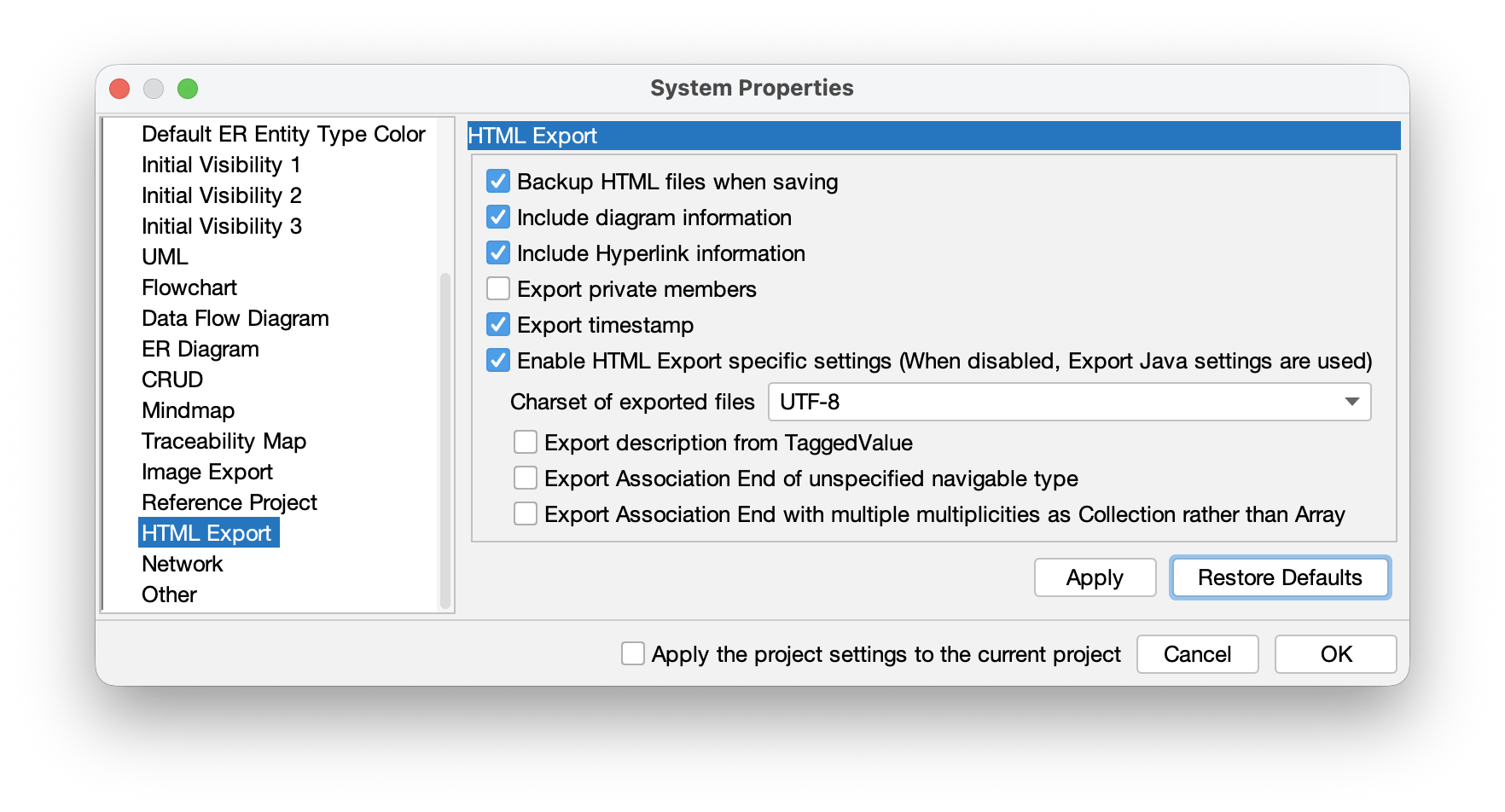

You can choose what information to be included in the [Tools] – [System Properties] – [HTML Export].
HTML Export Option

section divider

RTF Document

  1. Go to [Tools] – [Export RTF] from the main menu.
    Export RTF
  2. Choose which models to export from the tree
    Select Package to export to RTF

  3. Click [Option] button for configuring detailed exporting options.
    Opening RTF export option

  4. [Option] menu consists of several menus like this:
    RTF Export Option

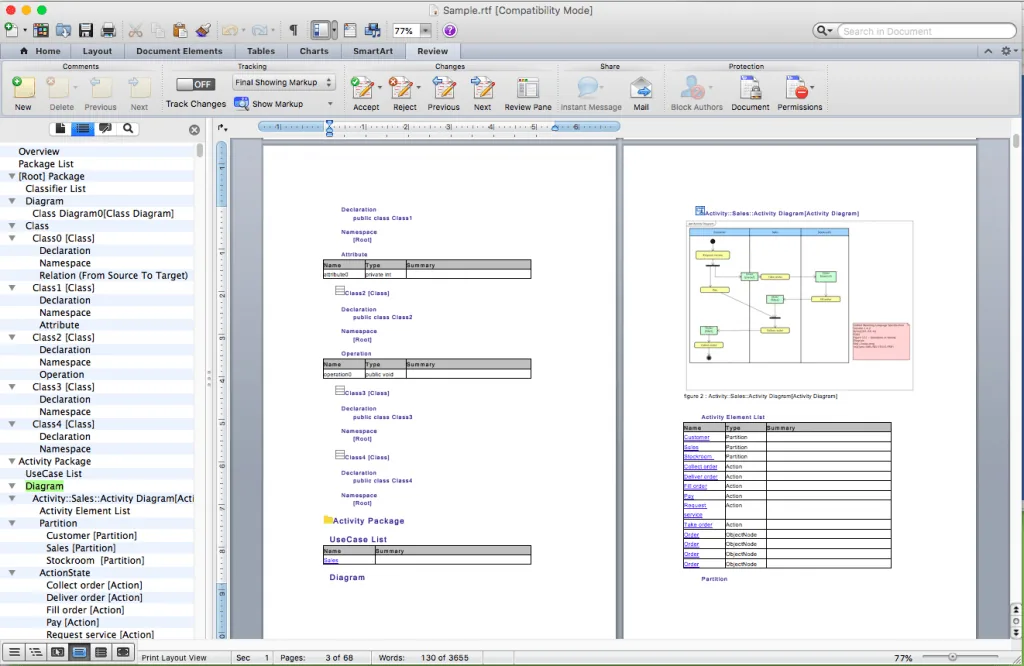

  5. Then you will get RTF exported like as below:
    Export-RTF Sample
section divider

How to include UseCase Description to RTF Document

If you’d like to include UseCase descriptions, go to [Tools] – [Export RTF], click [Options].
Opening RTF export option

Select [UseCase] and make sure you have checked the [UseCase Description] and click [Apply] – [OK].
Export UseCase Description to RTF

section divider

About RTF Export

  • Currently, you cannot customize the format.
  • Currently, the following information will be exported to RTF:
    A list of packages, classes, UseCases, Data Flow Diagram models, requirements, test cases, and All of the diagrams, UseCase descriptions, Classes, Attributes, Operations, Hierarchy of Activity diagram and Data Flow Diagram and action properties (definitions and tagged values)
